ML1912Z
-
PRODUCT INFO

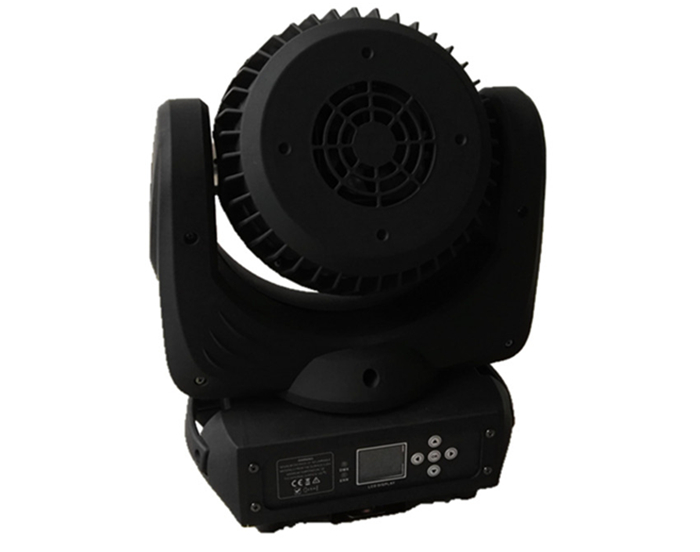

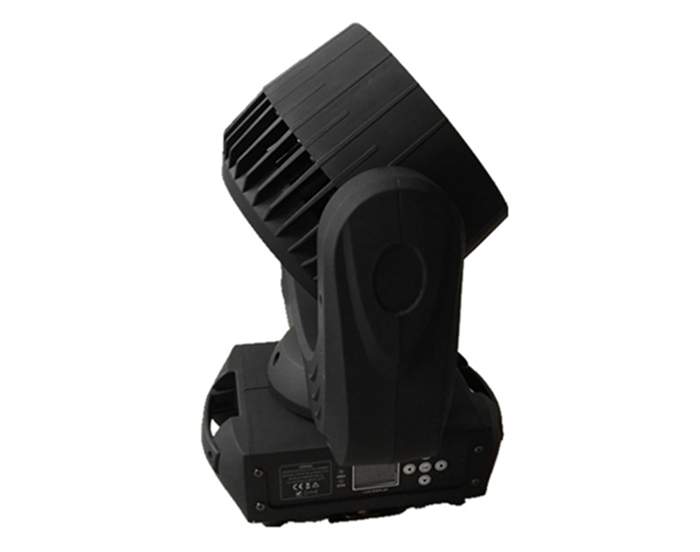

LED19X12W moving head Beam & Zoom light
●Voltage: AC 100V~240V, 50/60Hz
●Power consumption: 245W
●LED: 19*12W RGBW 4in1 LED
●Zoom: 8-50 degree
●Beam: Sharp &narrow
●Wash: Flat, big range
●Lens:special big lens,increase brightness
●Pan/Tilt/Zoom Movement: Smooth &silent
●Dmx Channel: 16CH
●Dimension: 324.8*188*395.4 mm
●Weight: 9.2Kgs
|
Chanel |
function |
＆#118alue |
|
1 |
dimmer |
0~100% |
|
2 |
red |
0-100% |
|
3 |
green |
0-100% |
|
4 |
blue |
0-100% |
|
5 |
white |
0-100% |
|
6 |
user-defined dimmer |
0~100% |
|
7 |
Pan |
0~100% |
|
8 |
Tilt |
0~100% |
|
9 |
Pan fine |
0~100% |
|
10 |
Tilt fine |
0~100% |
|
11 |
X/Y speed |
0~100% |
|
12 |
ZOOM |
0~100% |
|
13 |
STROBE |
0~100% |
|
14 |
0 |
Not use Macro function |
|
1~25 |
Console delay on | |
|
26-50 |
Console delay off | |
|
51-90 |
Program switch for choose color | |
|
91-130 |
Color pulse | |
|
131-170 |
Color jump | |
|
171-210 |
Color fade | |
|
211-250 |
Inner mode 1（no use） | |
|
251-255 |
Sound mode（uncontrollable） | |
|
15 |
0-255 |
Color change speed（CH14 ＆#118alue between 91-210） |
|
0 |
No color choose function | |
|
1~20 |
R255 G↑ B0 W0 | |
|
21~40 |
R↓ G255 B0 W0 | |
|
41~60 |
R0 G255 B↑ W0 | |
|
61-80 |
R0 G↓ B255 W0 | |
|
81-100 |
R↑ G0 B255 W0 | |
|
101-120 |
R255 G0 B↓ W0 | |
|
121-140 |
R255 G↑ B↑ W0 | |
|
141-160 |
R↓ G↓ B255 W0 | |
|
161-170 |
R255 G255 B255 W255 | |
|
171-200 |
R0 G0 B0 W0 | |
|
201-205 |
R242 G204 B5 W227 | |
|
206-210 |
R242 G215 B5 W227 | |
|
211-215 |
R255 G255 B50 W255 | |
|
216-220 |
R255 G255 B90 W255 | |
|
221-225 |
R255 G255 B118 W255 | |
|
226-230 |
R255 G255 B132 W255 | |
|
231-235 |
R255 G255 B151 W255 | |
|
236-240 |
R255 G255 B171 W255 | |
|
241-245 |
R255 G255 B185 W255 | |
|
246-250 |
R255 G255 B197 W255 | |
|
251-255 |
R255 G255 B234 W255 | |
|
16 |
0-9 |
ID no use |
|
10-19 |
ID1 | |
|
20-29 |
ID2 | |
|
30-39 |
ID3 | |
|
40-49 |
ID4 | |
|
50-59 |
ID5 | |
|
60-69 |
ID6 | |
|
70-79 |
ID7 | |
|
80-89 |
ID8 | |
|
90-99 |
ID9 | |
|
100-109 |
ID10 | |
|
110-119 |
ID11 | |
|
120-129 |
ID12 | |
|
130-139 |
ID13 | |
|
140-149 |
ID14 | |
|
150-159 |
ID15 | |
|
160-169 |
ID16 | |
|
170-179 |
ID17 | |
|
180-189 |
ID18 | |
|
190-199 |
ID19 | |
|
200-209 |
ID20 | |
|
210-219 |
ID21 | |
|
220-229 |
ID22 | |
|
230-239 |
ID23 | |
|
240-249 |
ID24 | |
|
250-255 |
ID25 |
