Frequency: 50~60Hz
Lamp: 2R 120W Lamp
3° Precision Beam

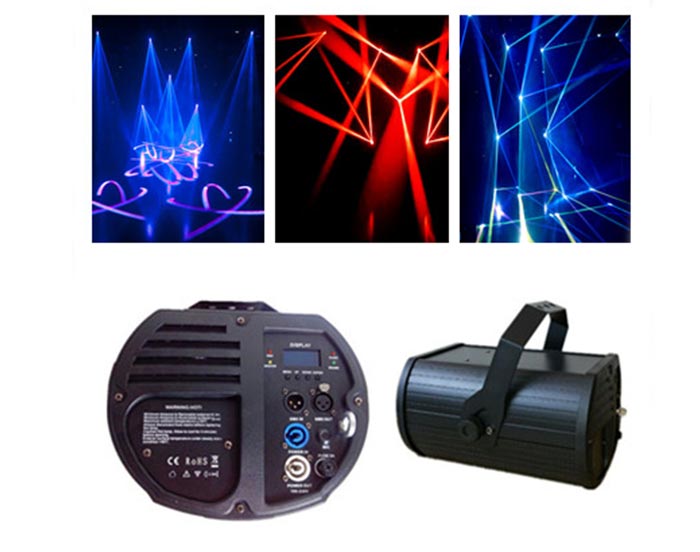

Beam,Scanner,Laser Simulator 3 in 1，2R Sniper
● Voltage: AC90~240V
● Frequency: 50~60Hz
● Lamp: 2R 120W Lamp
● 3° Precision Beam
● 3 Facet Rotating Prism
● Color: 14 Dichroic Colors+ White
● Gobo: 17 gobos + open
● X/Y and Z HIGH-SPEED Mirror System
●A four-button control panel and LCD display
●Professional 3 pin DMX in/out ( 5 pin option)
●powercon in/out connections
●An electronice power supply covers worldwide voltages and frequencies
● Control Channel: 15/17/19CH
● Size: 36 x 31x30cm
● Weight: 9.5KG
|
CH |
Function |
Instructions |
|
1 |
0-255 |
Pan |
|
2 |
0-255 |
Pan fine（16Bit） |
|
3 |
0-255 |
Tilt |
|
4 |
0-255 |
Tilt fine （16Bit） |
|
5 |
0-7 |
No function |
|
8-255 |
Pan Shaking Movement slow to fast |
|
6 |
0-7 |
No function |
|
8-255 |
Pan Shaking Movement slow to fast | |
|
7 |
0-2 |
Open |
|
3-4 |
Open+color 1 | |
|
5-6 |
Color 1 | |
|
7-9 |
Color 1+Color 2 | |
|
10-11 |
Coloar 2 | |
|
12-13 |
Color 2+Color 3 | |
|
14-15 |
Color 3 | |
|
16-18 |
Color 3+Color 4 | |
|
----- |
----------- | |
|
59-61 |
Color 13 | |
|
62-63 |
Color13+Color 14 | |
|
64-65 |
Color 14 | |
|
66-67 |
Color14+Open | |
|
68-128 |
Color wheel index-color1-color 15 | |
|
129-190 |
Clockwise color rotation from fast to slow | |
|
191-193 |
Stop | |
|
194-255 |
Clockwise Color Rotation from slow to fast | |
|
8 |
0-7 |
Open |
|
8-14 |
Gobo 1 | |
|
15-22 |
Gobo 2 | |
|
23-29 |
Gobo 3 | |
|
------ |
-------- | |
|
98-104 |
Gobo 13 | |
|
105-112 |
Gobo 14 | |
|
113-119 |
Gobo 15 | |
|
120-126 |
Gobo 16 | |
|
127-133 |
Gobo 17 | |
|
134-194 |
Clockwise Gobo rotation from fast to slow | |
|
195-255 |
Clockwise Gobo rotation from slow to fast | |
|
9 |
0-8 |
Off |
|
9-16 |
Pattern Macro 1 | |
|
17-25 |
Pattern Macro 2 |
|
|
26-33 |
Pattern Macro 3 |
|
34-42 |
Pattern Macro 4 | |
|
43-50 |
Pattern Macro 5 | |
|
------ |
---------------------- | |
|
196-203 |
Pattern Macro 24 | |
|
204-212 |
Pattern Macro 25 | |
|
221-229 |
Pattern Macro 26 | |
|
230-237 |
Pattern Macro 27 | |
|
238-246 |
Pattern Macro 28 | |
|
247-255 |
Pattern Macro 29 | |
|
10 |
0-9 |
Stop |
|
10-120 |
Clockwise pattern Rotation from fast to slow | |
|
121-134 |
Stop | |
|
135-245 |
Clockwise pattern Rotation from slow to fast | |
|
246-255 |
Stop | |
|
11 |
0-9 |
Stop |
|
10-120 |
Horizontal pattern Rotation from fast to slow | |
|
121-134 |
Stop | |
|
135-245 |
Horizontal pattern Rotation from slow to fast | |
|
246-255 |
Stop | |
|
12
|
0-127 |
Pattern Zoom manual |
|
128-255 |
Pattern Zoom from slow to fast | |
|
13 |
0-127 |
0-360° |
|
128-191 |
Clockwise rotation from fast to slow | |
|
192-255 |
Counterclockwise rotation from slow to fast | |
|
14 |
0-7 |
No function |
|
8-255 |
Shaking from slow to fast | |
|
15 |
0-255 |
Prism movement |
|
16 |
0-127 |
Prism indexing |
|
128-191 |
Prism clockwise from fast to slow | |
|
192-255 |
Prism counterclockwise rotation from slow to fast | |
|
17 |
0-255 |
Dimmer intensity 0-100% |
|
18 |
0-7 |
No function |
|
|
8-255 |
Strobe from slow to fast |
|
19 |
0-39 |
No function |
|
40-59 |
Lamp on | |
|
60-79 |
Lamp off | |
|
80-89 |
All motor reset | |
|
90-99 |
Pan/tilt motor reset | |
|
100-109 |
Color motor reset | |
|
110-119 |
Gobo motor reset | |
|
120-129 |
Strobe&Dimmer motor reset | |
|
130-139 |
Other motors reset | |
|
140-149 |
Enable blackout when X/Y movement | |
|
150-159 |
Disable blackout when X/Y movement | |
|
160-169 |
enable blackout when color motor move | |
|
170-179 |
Disable blackout when color motor move | |
|
180-189 |
enable blackout when gobo motor move | |
|
190-199 |
Disable blackout when gobo motor move | |
|
200-219 |
System Reset | |
|
220-255 |
No function |
